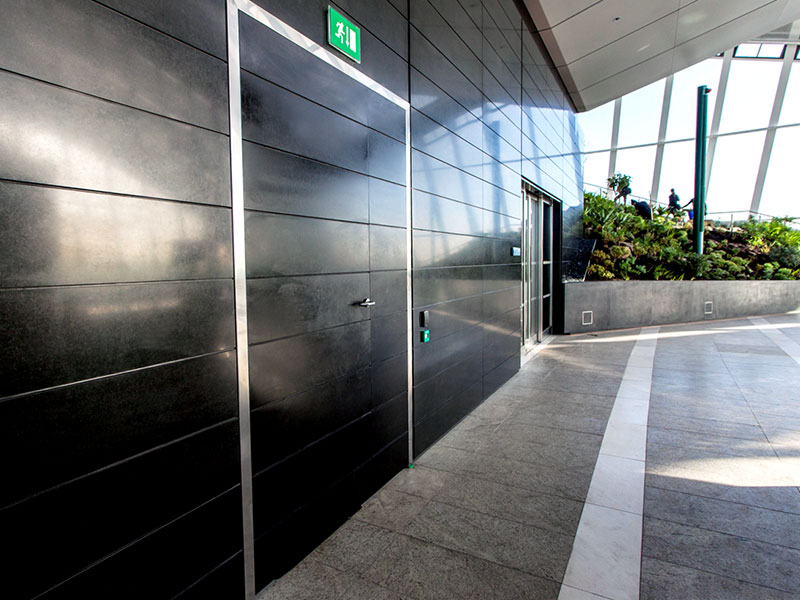

The VISION 8000 FR SERIES is a fire rated, high quality concealed riser door, designed to provide a simple yet secure permanent means of accessing building services, where the facade of the door can be clad in different materials including stone marble, ceramic and tile.
Suitable for vertical use into tiled jointless plaster and plasterboard walls, where doors are to be installed prior to tiling. Specified for use in hotels, commercial buildings, domestic or commercial kitchens and bathrooms and shower rooms, where a fire-rated solution is required for discreet access to mechanical and electrical services. All VISION 8000 FR Series riser doors are manufactured to order and are designed to match the specified tile module. This series of fire-rated riser doors can be clad in materials including stone, marble, tile or ceramic for a concealed aesthetic finish or to provide a design that is visually impacting for any project.
COMPOSITION
The welded metal frame holds a metal door tray lined with tile backing board. The door is hinged via fully adjustable concealed hinges and opens out towards the user. It is held closed by either a three point lock (3PL) or a three point high security lock (3HS).
Panels are manufactured to the exact tile module, that are fully concealed so after installation only the open grout line is visible (TF/TD). A constant grout width gap is maintained between the door and the frame by the load bearing hinge system, with up to 120kg capacity.
Supplied fully powder coated in matt RAL 9010, with other colours available on request.
Please contact our Technical team on 01827 719051 for more information.
FRAME
1.5mm thick, factory welded electro-galvanised mild steel with concealed frame flange.
DOOR
1.5mm thick, electro-galvanised mild steel door tray
LOCKS
Available with;
FIRE RATING
The VISION 8000 SERIES FIRE RATED riser door is fire rated for up to 1hr (8000-1FR) or 2hrs (8000-2FR) - tested to BS EN 1634-1:2000
It is designed to not impair the resistance of the rated wall it is installed to.
ACOUSTIC SHIELDING
The VISION 8000 Series, 2 hour fire rated riser door has a standard acoustic rating of 33dB.
TYPICAL SIZES / WEIGHTS
Nominal only, actual size is dependent on tile selected.
Available in sizes from 300 x 300 mm minimum to 1050 x 3000 mm maximum for a single door (SD).
Size refers to outer frame.
Measurements shown X x Y;
SINGLE DOOR (SD)
300 x 300mm - 4kg
300 x 600mm - 7kg
450 x 450mm - 8kg
600 x 600mm - 15kg
600 x 900mm - 22kg
600 x 1200mm - 28kg
MIN/MAX SIZES
Leaf width (minimum) = 300 mm
Leaf height (minimum) = 300 mm
Leaf width (maximum) = 1050 mm
Leaf height (maximum) = 3000 mm
NOTES
| Fire Rating | Fire Rated for 1hr (1FR) or 2hrs (2FR) - third party tested to BS EN 1634-1:2000 |
| SUITABILITY | Suitable for vertical use where riser door is to be installed prior to tiling. Ideal for use in kitchens, bathrooms, or shower rooms where discreet access to services is required. All riser doors are manufactured to order and can be designed to suit the specified tile module. |
| MATERIAL | Frame 1.5mm / Door 1.5mm thick electro-galvanised mild steel. Door lined with 12mm glass reinforced gypsum board. |
| DOOR CONFIGURATION | Single door(SD) and double door (DD) options |
| FRAME DEPTH | Overall frame depth - 76.5mm |
| GROUT | Minimum grout thickness = 3mm |
| FINISH | White powder coated frame and door to RAL 9010M (Matt finish) |
| LOCK | Concealed 3 point security lock (3PL) / 3 point lock high security (3HS) |
| STRUCTURAL OPENING | X and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+5mm) x (Y+5mm). |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051 |
More info? Place an order? Get in touch today
Sales: 01827 719050 / Technical: 01827 719051
FRAME EDGE PROFILE
Concealed Frame: /TF/
ACCESS PANEL LOCKING
Choose the level of security for your application
3 Point Lock: 3PL
3 Point High Security: 3HS
