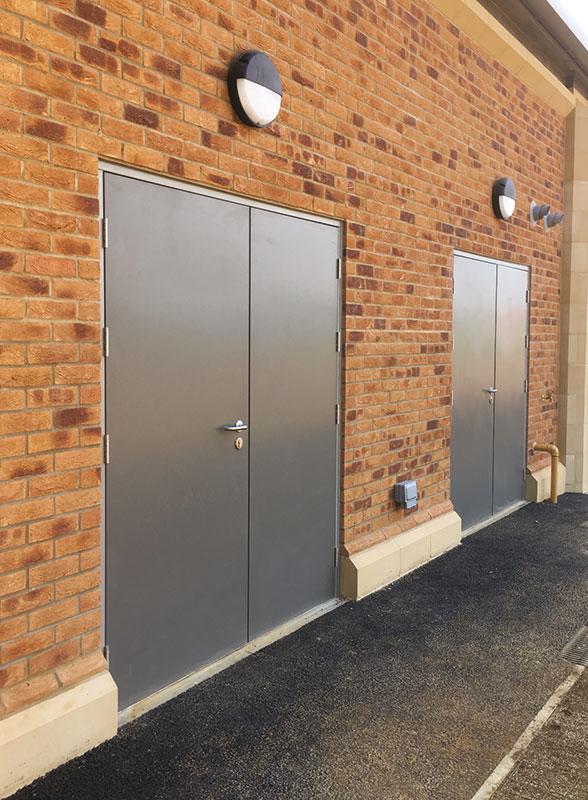

PRO OUTA DOR - External Fire Door from Profab Access
Steel Doors

The PRO-OUTA-DOR is a CE Marked external steel fire door with a 10-year anti-corrosion guarantee. Custom made in the UK it is available with a third party fire certified fire rating up to 4 hours.

Delivered fully assembled this general-purpose external steel door is durable, versatile and cost effective. It is specified for use in a diverse range of residential, commercial and industrial applications including sheltered accommodation, schools, offices, multi-storey car parks and supermarkets.

PRO-OUTA-DOR

Features / Benefits

  • CE Marked to BS EN 14351-1 and EN 16034
  • Available as a fire rated doorset, tested to EN 1634 and CE marked as fire-resistant external doorsets
  • CERTIFIRE fire rating options for 60 minutes, 120 minutes and 240 minutes
  • Can be used as a fire exit door – when fitted with appropriate panic hardware to comply with BS EN 1125 and BS EN 179
  • Manufactured from corrosion resistant Magnelis© steel, offering a 10 year anti-corrosion guarantee with a standard PPC finish
  • Depending on construction and infill, thermal ‘u’ values of 3.2 - 1.6 w/m2k are obtainable
  • Made to measure
  • Range of vision panels available - double glazed as standard
  • Option for louvre panels, with 50% airflow as standard
  • Side and over panel arrangements can be supplied – solid, glazed, louvred, hinged, removable, flush
  • Wide range of lock options including mortice locks and latches, access control and panic escape hardware
  • Supplied fully assembled with hardware factory fitted, saving time on site
  • Adjustable fixing feet and variable sub-frame to ensure hassle free installation.


DOOR LEAF

Thickness;55mm

Material: 1.2mm corrosion resistant Magnelis© steel sheets as standard, with upgrade options of 1.5mm and 2.0mm sheets. Also available in 304 or 316 grade stainless steel.

Infill: Self-supporting resin-impregnated honeycomb core as standard. Options for mineral wool, polyurethane or solid timber.

Construction: Door blade manufactured from two 1·2mm sheets lockformed together, by bonding skins around a rigid core, using a no-weld construction.

Thermal ‘U’ Values:

Infill: U Value (w/m2k)

Honeycomb: 3.1

Solid Timber: 2.9

Mineral Wool (with steel strengtheners): 2.4

Mineral Wool (lamella): 1.8

Polyurethane: 1.6


DOOR FRAME

Folded from 1·6mm Magnelis© with upgrade option to 2.0mm

Screw and tab construction with four adjustable fixing feet per jamb

Variable sub frame supplied as standard to accommodate site tolerance of -0/+30mm

Frame fitted with four dog bolt hinges as standard.


WALL CONSTRUCTION

The PRO-OUTA-DOR can be used in all types of masonry, concrete and flexible stud wall (cold wall style).


SIZES

Doors are custom manufactured in 10mm increments - for single openings 690mm to 290mm and for double openings 1290mm to 2600mm, at heights up to 2900mm

Contact the Sales office for special configurations and finishes.

PROFILE

Refer to datasheet for types of profile available

THRESHOLD

Refer to datasheet for further information on types of threshold available

VISION PANELS

Refer to datasheet for further information on types of vision panels available

LOUVRE PANELS

Refer to datasheet for further information on size and configurations of louvre panels available

PANEL ARRANGEMENTS

Refer to datasheet for further information on the availability of matching side and over panel arrangements

LOCKS

Refer to brochure for types of lock available

FINISHES

All external steel doors are supplied with a choice of polyester powder coatings from our Standard PPC Colour Range


Require an external steel fire door with a low thermal “U” value and EI fire rated performance?

Take a look at the PRO-OUTA-DOR Premio »

Performance Standards PRO-OUTA-DOR

Fire Testing Third party fire rated - Certifire Scheme Accredited up to 1hr, 2hr or 4hr
Quality CNC manufactured to ISO 9001:2015
CE Marked Tested in accordance with health, safety, and environmental protection standards for products sold within the EEA
BS EN 14351-1 Product standard, performance characteristics for windows and external pedestrian doorsets
EN 16034 Fire resistance/smoke control tests for pedestrian doorsets
BS EN 1125 Panic exit devices test on building hardware for the operation of a door from the inside in a panic situation
BS EN 179 Emergency exit devices test on building hardware for the operation of a door from the inside in an emergency situation
PRO OUTA DOR - external fire door from Profab Access

Downloads PRO-OUTA-DOR

External Resources / Links

Guide Specification PRO-OUTA-DOR

SUITABILITYVertical use as a general-purpose external door also available as a fire rated doorset, or fire door exit when fitted with panic hardware. Manufactured to order.
MATERIALFrame folded 1.6mm/Leaf 1.2mm corrosion resistant Magnelis© as standard. Options for 1.5mm and 2mm/304 or 316 grade stainless steel. Infill - self-support resin impregnated honeycomb core with the option of mineral wool, polyurethane or solid timber.
SIZESCustom manufactured in 10mm increments. Single openings - 690mm to 1290mm. Double openings - 1290mm to 260mm / Heights up to 2900mm
DOOR LEAF THICKNESS55mm
DOOR CONFIGURATIONSingle door (SD) and double door (DD) options
THERMAL 'U' VALUESDepending on construction and infill values of 3.2 - 1.6 w/m2k are obtainable
VISION PANELSDouble glazed as standard. Custom sizes/glass available to customer requirements
PANEL ARRANGEMENTSStandard side panels up to 1290mm wide x 2900mm high. Standard over panels up to 1290 x 2900mm (single door) or 1290 x 2600mm (double door)
LOUVRE PANELSFrames 1.2mm thick, blades 0.7mm. (Fly mesh available as optional extra)
FINISHWhite powder coated frame and door to RAL 9010M (matt finish) as standard. Optional finishes - non-standard RAL colours, PVC Laminate from standard range, Woodgrain PVC laminates, Stainless Steel brushed, polished or patterned or unfinished for site finishing
LOCKSMortice Locks and Latches/Mortice Multi-part Locks/Locking Access Control Devices/Panic Escape Hardware/Outside Key Access/ Access Controlled External Access available – refer to datasheet
FIRE RATINGThird party CERTIFIRE scheme accredited
NOTESFor technical assistance, please contact our Technical Department on +44 (0)1827 719051

More info? Place an order? Get in touch today

Sales: 01827 719050 / Technical: 01827 719051

Options

A range of optional finishes are available, please specify at time of order.

  • PPC finished
  • PVC laminate
  • Woodgrain laminate
  • Stainless Steel
  • Unfinished for site finishing
